Our Fleet

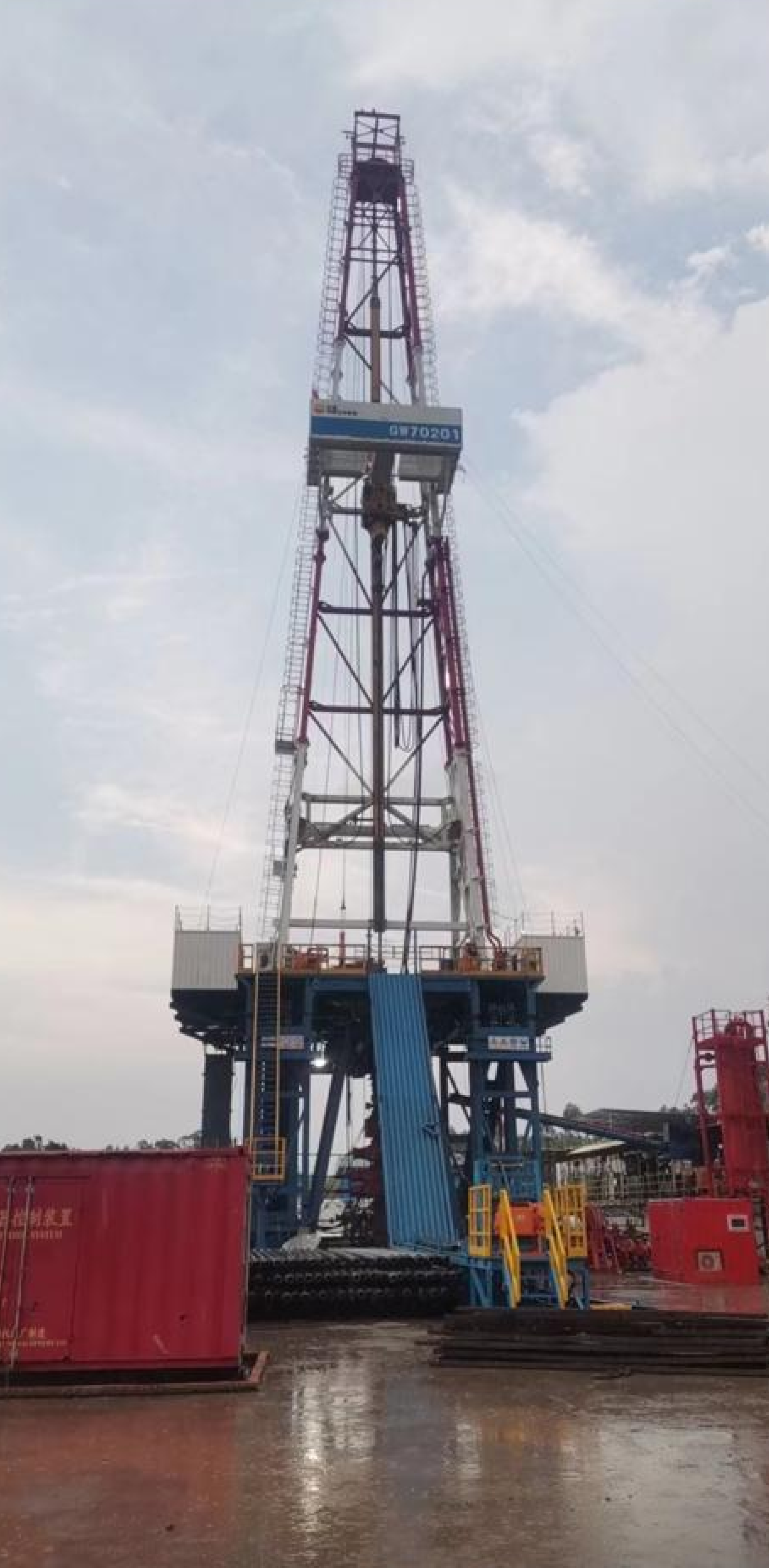

Rig KAKA-J 2000 HP Land Rig
Technical Specification
Rating: 200HP • 1,491Kw
Hook load: 1,000,000Lbs@12 Lines • 453Tons
Drilling depth: 6,100m
Year of construction: 2022
Last condition survey: November 2024
Mast
Type: HABO JJ450/45.6 Swing Up
Height: 146.9Ft • 45.6m
Base: 29.5Ft • 8.99m
Width of top: 8.2Ft X 7.2Ft • 2.5m X 2.2m
Gross nom capacity: 1,000,000Lbs • 453Tons
Number of lines: 12
Substructure
Type: HABO DZ450/10.5-S
Height: 35Ft • 10.67m
Stabbing board: JJ450/45 (mechanical) 6 - 14m (adjustable height)
Setback load: 552,560Lbs • 276,28Tons
Simultaneous setback - hookload capacity: 1,000,000Lbs • 453Tons
Clear height below: 29Ft • 8,84m
Rotary table BOP trolly handling system: Yes
Drawworks
Type: HABO JC70DB
Horsepower rating: 2,00HP • 1,491Kw
Drum diameter: 36ins • 38.1mm
Drilling line diameter: 1-1/2ins • 38.1mm
Line breaking strength: 197,830Lbs • 99Tons
Maximum line pull: 1,000,000Lbs • 12Lines
Minimum line pull: 900,000Lbs • 10Lines
Auxiliary brake: AC motor regenerative brakes
Top Drive
Type: HH/CHINA/DQ-500Z
Rated capacity: 500Ton • 1,100,000Lbs
Torque: 51,630Ft-Lbs • 70,114N-m
Rated power: 938HP
Max rotary speed: 220rpm
Rotary table
Type: GAOYOUHAOXIANG/ZP 375
Rated capacity: 585Ton • 1,290,000Lbs
Torque: 7,596Ft-Lbs • 70,114N-m
Rated power: 800HP
Max rotary speed: 300rpm
Maximum opening: 37-1/2ins • 952.3mm
Mud System
Pump type: China F-1600HL
Rated capacity: 3 X 1,600HP
Maximum flowrate: 3 X 51.58L/min
Shale shaker: 3 X XIBUSHIYOU CHINA
Standpipe pressure: 5,000psi
Active mud system: 1,548bbls
Reserve mud system: 458bbls
Water tank capacity: 629bbls
BOP Equipment
Type: GAOYOUHAOXIANG/ZP 375
Rated capacity: 585Ton • 1,290,000Lbs
Torque: 7,596Ft-Lbs • 70,114N-m
Rated power: 800HP
Max rotary speed: 300rpm
Maximum opening: 37-1/2ins • 952.3mm
Rig supply power system
Engine type: China/Weichai
Quantity: 5
Horsepower rating: 1,200Kw @ 1,500rpm
SCR system: VFD SYSTEM, HABO-ZJ70DB
Output voltage: 600/400/200V
Frequency: 50Hz
Technical Specification
Rating: 200HP • 1,491Kw
Hook load: 1,000,000Lbs@12 Lines • 453Tons
Drilling depth: 6,100m
Year of construction: 2022
Last condition survey: November 2024
Mast
Type: HABO JJ450/45.6 Swing Up
Height: 146.9Ft • 45.6m
Base: 29.5Ft • 8.99m
Width of top: 8.2Ft X 7.2Ft • 2.5m X 2.2m
Gross nom capacity: 1,000,000Lbs • 453Tons
Number of lines: 12
Substructure
Type: HABO DZ450/10.5-S
Height: 35Ft • 10.67m
Stabbing board: JJ450/45 (mechanical) 6 - 14m (adjustable height)
Setback load: 552,560Lbs • 276,28Tons
Simultaneous setback - hookload capacity: 1,000,000Lbs • 453Tons
Clear height below: 29Ft • 8,84m
Rotary table BOP trolly handling system: Yes
Drawworks
Type: HABO JC70DB
Horsepower rating: 2,00HP • 1,491Kw
Drum diameter: 36ins • 38.1mm
Drilling line diameter: 1-1/2ins • 38.1mm
Line breaking strength: 197,830Lbs • 99Tons
Maximum line pull: 1,000,000Lbs • 12Lines
Minimum line pull: 900,000Lbs • 10Lines
Auxiliary brake: AC motor regenerative brakes
Top Drive
Type: HH/CHINA/DQ-500Z
Rated capacity: 500Ton • 1,100,000Lbs
Torque: 51,630Ft-Lbs • 70,114N-m
Rated power: 938HP
Max rotary speed: 220rpm
Rotary table
Type: GAOYOUHAOXIANG/ZP 375
Rated capacity: 585Ton • 1,290,000Lbs
Torque: 7,596Ft-Lbs • 70,114N-m
Rated power: 800HP
Max rotary speed: 300rpm
Maximum opening: 37-1/2ins • 952.3mm
Mud System
Pump type: China F-1600HL
Rated capacity: 3 X 1,600HP
Maximum flowrate: 3 X 51.58L/min
Shale shaker: 3 X XIBUSHIYOU CHINA
Standpipe pressure: 5,000psi
Active mud system: 1,548bbls
Reserve mud system: 458bbls
Water tank capacity: 629bbls
BOP Equipment
Type: GAOYOUHAOXIANG/ZP 375
Rated capacity: 585Ton • 1,290,000Lbs
Torque: 7,596Ft-Lbs • 70,114N-m
Rated power: 800HP
Max rotary speed: 300rpm
Maximum opening: 37-1/2ins • 952.3mm
Rig supply power system
Engine type: China/Weichai
Quantity: 5
Horsepower rating: 1,200Kw @ 1,500rpm
SCR system: VFD SYSTEM, HABO-ZJ70DB
Output voltage: 600/400/200V
Frequency: 50Hz
Technical Specification
Rating: 200HP • 1,491Kw
Hook load: 1,000,000Lbs@12 Lines • 453Tons
Drilling depth: 6,100m
Year of construction: 2022
Last condition survey: November 2024
Mast
Type: HABO JJ450/45.6 Swing Up
Height: 146.9Ft • 45.6m
Base: 29.5Ft • 8.99m
Width of top: 8.2Ft X 7.2Ft • 2.5m X 2.2m
Gross nom capacity: 1,000,000Lbs • 453Tons
Number of lines: 12
Substructure
Type: HABO DZ450/10.5-S
Height: 35Ft • 10.67m
Stabbing board: JJ450/45 (mechanical) 6 - 14m (adjustable height)
Setback load: 552,560Lbs • 276,28Tons
Simultaneous setback - hookload capacity: 1,000,000Lbs • 453Tons
Clear height below: 29Ft • 8,84m
Rotary table BOP trolly handling system: Yes
Drawworks
Type: HABO JC70DB
Horsepower rating: 2,00HP • 1,491Kw
Drum diameter: 36ins • 38.1mm
Drilling line diameter: 1-1/2ins • 38.1mm
Line breaking strength: 197,830Lbs • 99Tons
Maximum line pull: 1,000,000Lbs • 12Lines
Minimum line pull: 900,000Lbs • 10Lines
Auxiliary brake: AC motor regenerative brakes
Top Drive
Type: HH/CHINA/DQ-500Z
Rated capacity: 500Ton • 1,100,000Lbs
Torque: 51,630Ft-Lbs • 70,114N-m
Rated power: 938HP
Max rotary speed: 220rpm
Rotary table
Type: GAOYOUHAOXIANG/ZP 375
Rated capacity: 585Ton • 1,290,000Lbs
Torque: 7,596Ft-Lbs • 70,114N-m
Rated power: 800HP
Max rotary speed: 300rpm
Maximum opening: 37-1/2ins • 952.3mm
Mud System
Pump type: China F-1600HL
Rated capacity: 3 X 1,600HP
Maximum flowrate: 3 X 51.58L/min
Shale shaker: 3 X XIBUSHIYOU CHINA
Standpipe pressure: 5,000psi
Active mud system: 1,548bbls
Reserve mud system: 458bbls
Water tank capacity: 629bbls
BOP Equipment
Type: GAOYOUHAOXIANG/ZP 375
Rated capacity: 585Ton • 1,290,000Lbs
Torque: 7,596Ft-Lbs • 70,114N-m
Rated power: 800HP
Max rotary speed: 300rpm
Maximum opening: 37-1/2ins • 952.3mm
Rig supply power system
Engine type: China/Weichai
Quantity: 5
Horsepower rating: 1,200Kw @ 1,500rpm
SCR system: VFD SYSTEM, HABO-ZJ70DB
Output voltage: 600/400/200V
Frequency: 50Hz

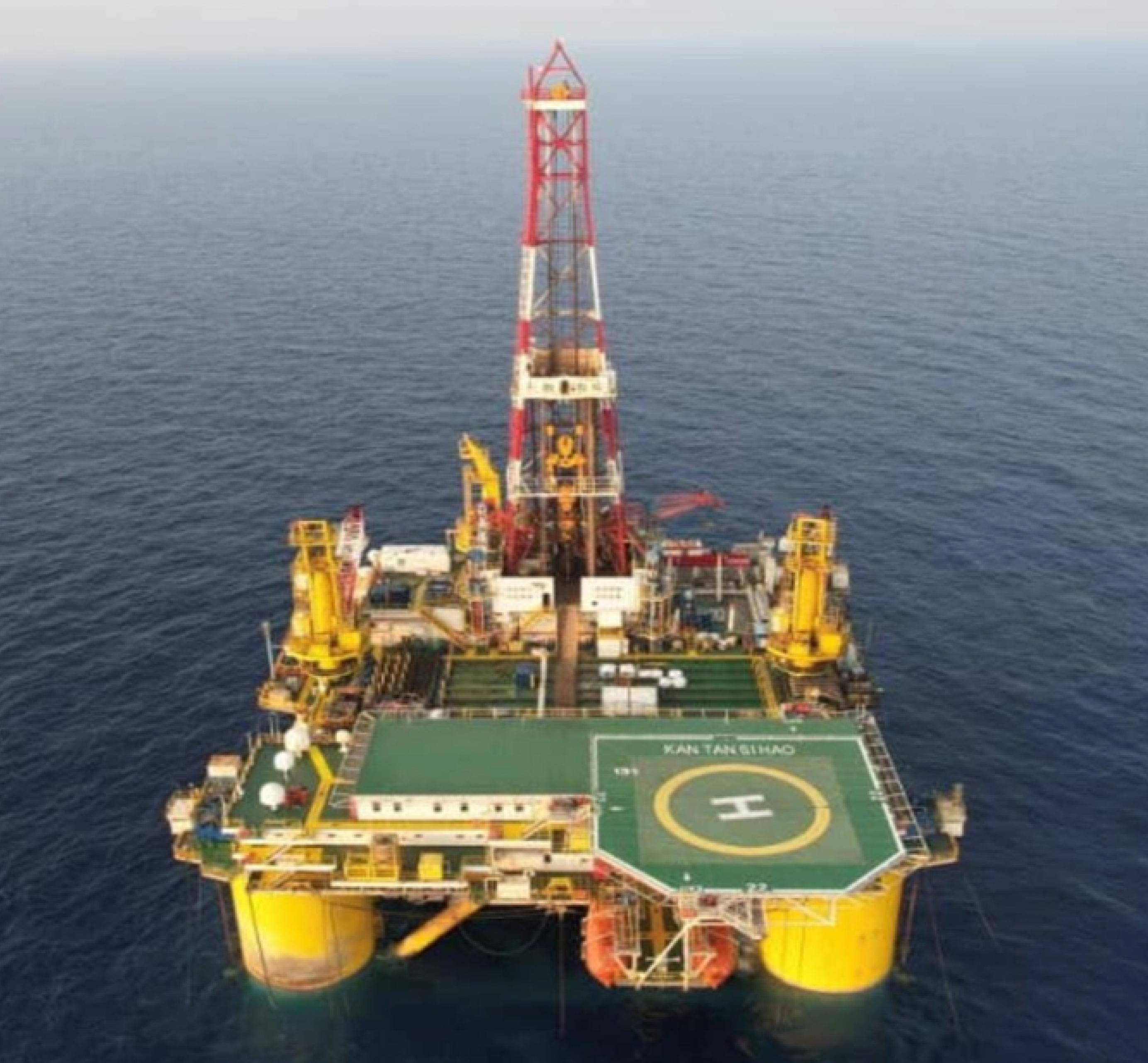

Kan Tan Si Hao (Kan Tan IV)
Main Particluars
Name: Kan Tan Si Hao (Kan Tan IV)
Rig Type: Semi-Submersible (A1 Colum-Stabilized Drilling Unit HELDK)
Year of Construction: 1983
Unit Design: Friede and Goldman Ltd (Super M2 Class)
Unit Construction Yard: Far East Livingston Shipyard
Unit Classification: American Bureau of Shipping (ABS) Chinese Class Society (CCS)
IMO No: 8755637 (MODU Code 79, 3RD ED)
Flag State: PANAMA
Call Sign: HO-2826
Gross Ton (at Load Line): 25,585
Net Ton (Light Ship): 12,671
Draft at Load Line: 65Ft
Performance: Water Depth = 25,00M • Drilling Depth = 60,000M
Type of Positioning System: Anchor
Main Dimensions
Weight (Light Ship): 12,671Tons
Displacement at Loadline: 25,585 Light Tons
Load Line: 65Ft
Overall Width (incl. Anchors): 228Ft
Overall Length (Including Helideck and Lifeboat): 275Ft
Main Deck Width: 202Ft
Main Deck Length: 220Ft
Main Deck Height above Moulded baseline (ABL): 116Ft
Drilling Draft/Related Displacement: 65Ft • 22,679 Light Tons
Transit Draft/Related Displacement: 24Ft • 15,942 Light Tons
Moon Pool Dimension: 66.5Ft X 34Ft
Maximum Substructure Load: 1,300,00Lbs
Maximum Rotary Beam Load: 1,792,000Lbs
Accommodation: 130 Persons
Storage Capacity
Fuel: 9,218Bbl • 1,465,662L
Drilling Water: 17,231Bbl
Portable Water: 6,998Bbl
Active and Reserve Mud Capacity: 1,759Bbl
Mud Processing Tank: 380Bbl
Bulk Bentonite/Barite: 8,508 Cubic Feet
Bulk Cement: 5,046 Cubic Feet
Sack Storage: 8,000 Sacks
Brine Storage: 1,991 Bbl
Base Oil Storage: 1,300 Bbl
Ballast System: 84,537Bbl
Pipe Rack Area: 6,300 Square Feet
Riser Rack Area: 3,261 Square Feet
Miscellaneous Storage Area: 6,408 Square Feet
Mooring System
Quantity: 8
Make/Model: SKAGIT WMD 48
Type (Electric/Hydraulic): Electric
Motors Make/Type: Toshiba DR 900 A
Total HP per Winch: 900HP
Rated Pull: 490T
Speed at Low Gear: 83Ft/Min
Control Location (Local/Remote/Both): Local
Emergency Release Type (Type/Location): Fitted
Cranes (Port)
Specifications: API
Make: Patriot King Post
Type: Diesel Engine/Hydraulic
Maximum Capacity (Main Hook): 50 Tons
Maximum Capacity (Whip Hook): 12 Tons
Boom Length: 120Ft
Maximum Capacity & Hoisting Speeds:
Load/Radius/Speeds: 50T/128Ft/66Ft/Min
Load/Radius/Speeds: 12T/134Ft/249Ft/Min
Hook Load Indicator Automatically Corrected for Boom Angle: Yes
Alarm (Audible/Visual/Both): Yes
Automatic Brake: Yes
Safety Latch on Hooks: Yes
Crown Saver (Limit Switch): Yes
Boom Illumination: Yes
Basket for Personnel Transfer: Yes
Cranes (Starboard)
Specifications: API
Make: Patriot King Post
Type: Diesel Engine/Hydraulic
Maximum Capacity (Main Hook): 50 Tons
Maximum Capacity (Whip Hook): 12 Tons
Boom Length: 120Ft
Maximum Capacity & Hoisting Speeds:
Load/Radius/Speeds: 50T/128Ft/66Ft/Min
Load/Radius/Speeds: 12T/134Ft/249Ft/Min
Hook Load Indicator Automatically Corrected for Boom Angle: Yes
Alarm (Audible/Visual/Both): Yes
Automatic Brake: Yes
Safety Latch on Hooks: Yes
Crown Saver (Limit Switch): Yes
Boom Illumination: Yes
Basket for Personnel Transfer: Yes
Social Control System
Specifications: API
Make: Patriot King Post
Type: Diesel Engine/Hydraulic
Maximum Capacity (Main Hook): 70 Tons
Maximum Capacity (Whip Hook): 12 Tons
Boom Length: 80Ft
Maximum Capacity & Hoisting Speeds:
Load/Radius/Speeds: 70T/88Ft/43Ft/Min
Load/Radius/Speeds: 12T/93Ft/249Ft/Min
Hook Load Indicator Automatically Corrected for Boom Angle: Yes
Alarm (Audible/Visual/Both): Yes
Automatic Brake: Yes
Safety Latch on Hooks: Yes
Crown Saver (Limit Switch): Yes
Boom Illumination: Yes
Basket for Personnel Transfer: Yes
Main Particluars
Name: Kan Tan Si Hao (Kan Tan IV)
Rig Type: Semi-Submersible (A1 Colum-Stabilized Drilling Unit HELDK)
Year of Construction: 1983
Unit Design: Friede and Goldman Ltd (Super M2 Class)
Unit Construction Yard: Far East Livingston Shipyard
Unit Classification: American Bureau of Shipping (ABS) Chinese Class Society (CCS)
IMO No: 8755637 (MODU Code 79, 3RD ED)
Flag State: PANAMA
Call Sign: HO-2826
Gross Ton (at Load Line): 25,585
Net Ton (Light Ship): 12,671
Draft at Load Line: 65Ft
Performance: Water Depth = 25,00M • Drilling Depth = 60,000M
Type of Positioning System: Anchor
Main Dimensions
Weight (Light Ship): 12,671Tons
Displacement at Loadline: 25,585 Light Tons
Load Line: 65Ft
Overall Width (incl. Anchors): 228Ft
Overall Length (Including Helideck and Lifeboat): 275Ft
Main Deck Width: 202Ft
Main Deck Length: 220Ft
Main Deck Height above Moulded baseline (ABL): 116Ft
Drilling Draft/Related Displacement: 65Ft • 22,679 Light Tons
Transit Draft/Related Displacement: 24Ft • 15,942 Light Tons
Moon Pool Dimension: 66.5Ft X 34Ft
Maximum Substructure Load: 1,300,00Lbs
Maximum Rotary Beam Load: 1,792,000Lbs
Accommodation: 130 Persons
Storage Capacity
Fuel: 9,218Bbl • 1,465,662L
Drilling Water: 17,231Bbl
Portable Water: 6,998Bbl
Active and Reserve Mud Capacity: 1,759Bbl
Mud Processing Tank: 380Bbl
Bulk Bentonite/Barite: 8,508 Cubic Feet
Bulk Cement: 5,046 Cubic Feet
Sack Storage: 8,000 Sacks
Brine Storage: 1,991 Bbl
Base Oil Storage: 1,300 Bbl
Ballast System: 84,537Bbl
Pipe Rack Area: 6,300 Square Feet
Riser Rack Area: 3,261 Square Feet
Miscellaneous Storage Area: 6,408 Square Feet
Mooring System
Quantity: 8
Make/Model: SKAGIT WMD 48
Type (Electric/Hydraulic): Electric
Motors Make/Type: Toshiba DR 900 A
Total HP per Winch: 900HP
Rated Pull: 490T
Speed at Low Gear: 83Ft/Min
Control Location (Local/Remote/Both): Local
Emergency Release Type (Type/Location): Fitted
Cranes (Port)
Specifications: API
Make: Patriot King Post
Type: Diesel Engine/Hydraulic
Maximum Capacity (Main Hook): 50 Tons
Maximum Capacity (Whip Hook): 12 Tons
Boom Length: 120Ft
Maximum Capacity & Hoisting Speeds:
Load/Radius/Speeds: 50T/128Ft/66Ft/Min
Load/Radius/Speeds: 12T/134Ft/249Ft/Min
Hook Load Indicator Automatically Corrected for Boom Angle: Yes
Alarm (Audible/Visual/Both): Yes
Automatic Brake: Yes
Safety Latch on Hooks: Yes
Crown Saver (Limit Switch): Yes
Boom Illumination: Yes
Basket for Personnel Transfer: Yes
Cranes (Starboard)
Specifications: API
Make: Patriot King Post
Type: Diesel Engine/Hydraulic
Maximum Capacity (Main Hook): 50 Tons
Maximum Capacity (Whip Hook): 12 Tons
Boom Length: 120Ft
Maximum Capacity & Hoisting Speeds:
Load/Radius/Speeds: 50T/128Ft/66Ft/Min
Load/Radius/Speeds: 12T/134Ft/249Ft/Min
Hook Load Indicator Automatically Corrected for Boom Angle: Yes
Alarm (Audible/Visual/Both): Yes
Automatic Brake: Yes
Safety Latch on Hooks: Yes
Crown Saver (Limit Switch): Yes
Boom Illumination: Yes
Basket for Personnel Transfer: Yes
Social Control System
Specifications: API
Make: Patriot King Post
Type: Diesel Engine/Hydraulic
Maximum Capacity (Main Hook): 70 Tons
Maximum Capacity (Whip Hook): 12 Tons
Boom Length: 80Ft
Maximum Capacity & Hoisting Speeds:
Load/Radius/Speeds: 70T/88Ft/43Ft/Min
Load/Radius/Speeds: 12T/93Ft/249Ft/Min
Hook Load Indicator Automatically Corrected for Boom Angle: Yes
Alarm (Audible/Visual/Both): Yes
Automatic Brake: Yes
Safety Latch on Hooks: Yes
Crown Saver (Limit Switch): Yes
Boom Illumination: Yes
Basket for Personnel Transfer: Yes
Main Particluars
Name: Kan Tan Si Hao (Kan Tan IV)
Rig Type: Semi-Submersible (A1 Colum-Stabilized Drilling Unit HELDK)
Year of Construction: 1983
Unit Design: Friede and Goldman Ltd (Super M2 Class)
Unit Construction Yard: Far East Livingston Shipyard
Unit Classification: American Bureau of Shipping (ABS) Chinese Class Society (CCS)
IMO No: 8755637 (MODU Code 79, 3RD ED)
Flag State: PANAMA
Call Sign: HO-2826
Gross Ton (at Load Line): 25,585
Net Ton (Light Ship): 12,671
Draft at Load Line: 65Ft
Performance: Water Depth = 25,00M • Drilling Depth = 60,000M
Type of Positioning System: Anchor
Main Dimensions
Weight (Light Ship): 12,671Tons
Displacement at Loadline: 25,585 Light Tons
Load Line: 65Ft
Overall Width (incl. Anchors): 228Ft
Overall Length (Including Helideck and Lifeboat): 275Ft
Main Deck Width: 202Ft
Main Deck Length: 220Ft
Main Deck Height above Moulded baseline (ABL): 116Ft
Drilling Draft/Related Displacement: 65Ft • 22,679 Light Tons
Transit Draft/Related Displacement: 24Ft • 15,942 Light Tons
Moon Pool Dimension: 66.5Ft X 34Ft
Maximum Substructure Load: 1,300,00Lbs
Maximum Rotary Beam Load: 1,792,000Lbs
Accommodation: 130 Persons
Storage Capacity
Fuel: 9,218Bbl • 1,465,662L
Drilling Water: 17,231Bbl
Portable Water: 6,998Bbl
Active and Reserve Mud Capacity: 1,759Bbl
Mud Processing Tank: 380Bbl
Bulk Bentonite/Barite: 8,508 Cubic Feet
Bulk Cement: 5,046 Cubic Feet
Sack Storage: 8,000 Sacks
Brine Storage: 1,991 Bbl
Base Oil Storage: 1,300 Bbl
Ballast System: 84,537Bbl
Pipe Rack Area: 6,300 Square Feet
Riser Rack Area: 3,261 Square Feet
Miscellaneous Storage Area: 6,408 Square Feet
Mooring System
Quantity: 8
Make/Model: SKAGIT WMD 48
Type (Electric/Hydraulic): Electric
Motors Make/Type: Toshiba DR 900 A
Total HP per Winch: 900HP
Rated Pull: 490T
Speed at Low Gear: 83Ft/Min
Control Location (Local/Remote/Both): Local
Emergency Release Type (Type/Location): Fitted
Cranes (Port)
Specifications: API
Make: Patriot King Post
Type: Diesel Engine/Hydraulic
Maximum Capacity (Main Hook): 50 Tons
Maximum Capacity (Whip Hook): 12 Tons
Boom Length: 120Ft
Maximum Capacity & Hoisting Speeds:
Load/Radius/Speeds: 50T/128Ft/66Ft/Min
Load/Radius/Speeds: 12T/134Ft/249Ft/Min
Hook Load Indicator Automatically Corrected for Boom Angle: Yes
Alarm (Audible/Visual/Both): Yes
Automatic Brake: Yes
Safety Latch on Hooks: Yes
Crown Saver (Limit Switch): Yes
Boom Illumination: Yes
Basket for Personnel Transfer: Yes
Cranes (Starboard)
Specifications: API
Make: Patriot King Post
Type: Diesel Engine/Hydraulic
Maximum Capacity (Main Hook): 50 Tons
Maximum Capacity (Whip Hook): 12 Tons
Boom Length: 120Ft
Maximum Capacity & Hoisting Speeds:
Load/Radius/Speeds: 50T/128Ft/66Ft/Min
Load/Radius/Speeds: 12T/134Ft/249Ft/Min
Hook Load Indicator Automatically Corrected for Boom Angle: Yes
Alarm (Audible/Visual/Both): Yes
Automatic Brake: Yes
Safety Latch on Hooks: Yes
Crown Saver (Limit Switch): Yes
Boom Illumination: Yes
Basket for Personnel Transfer: Yes
Social Control System
Specifications: API
Make: Patriot King Post
Type: Diesel Engine/Hydraulic
Maximum Capacity (Main Hook): 70 Tons
Maximum Capacity (Whip Hook): 12 Tons
Boom Length: 80Ft
Maximum Capacity & Hoisting Speeds:
Load/Radius/Speeds: 70T/88Ft/43Ft/Min
Load/Radius/Speeds: 12T/93Ft/249Ft/Min
Hook Load Indicator Automatically Corrected for Boom Angle: Yes
Alarm (Audible/Visual/Both): Yes
Automatic Brake: Yes
Safety Latch on Hooks: Yes
Crown Saver (Limit Switch): Yes
Boom Illumination: Yes
Basket for Personnel Transfer: Yes

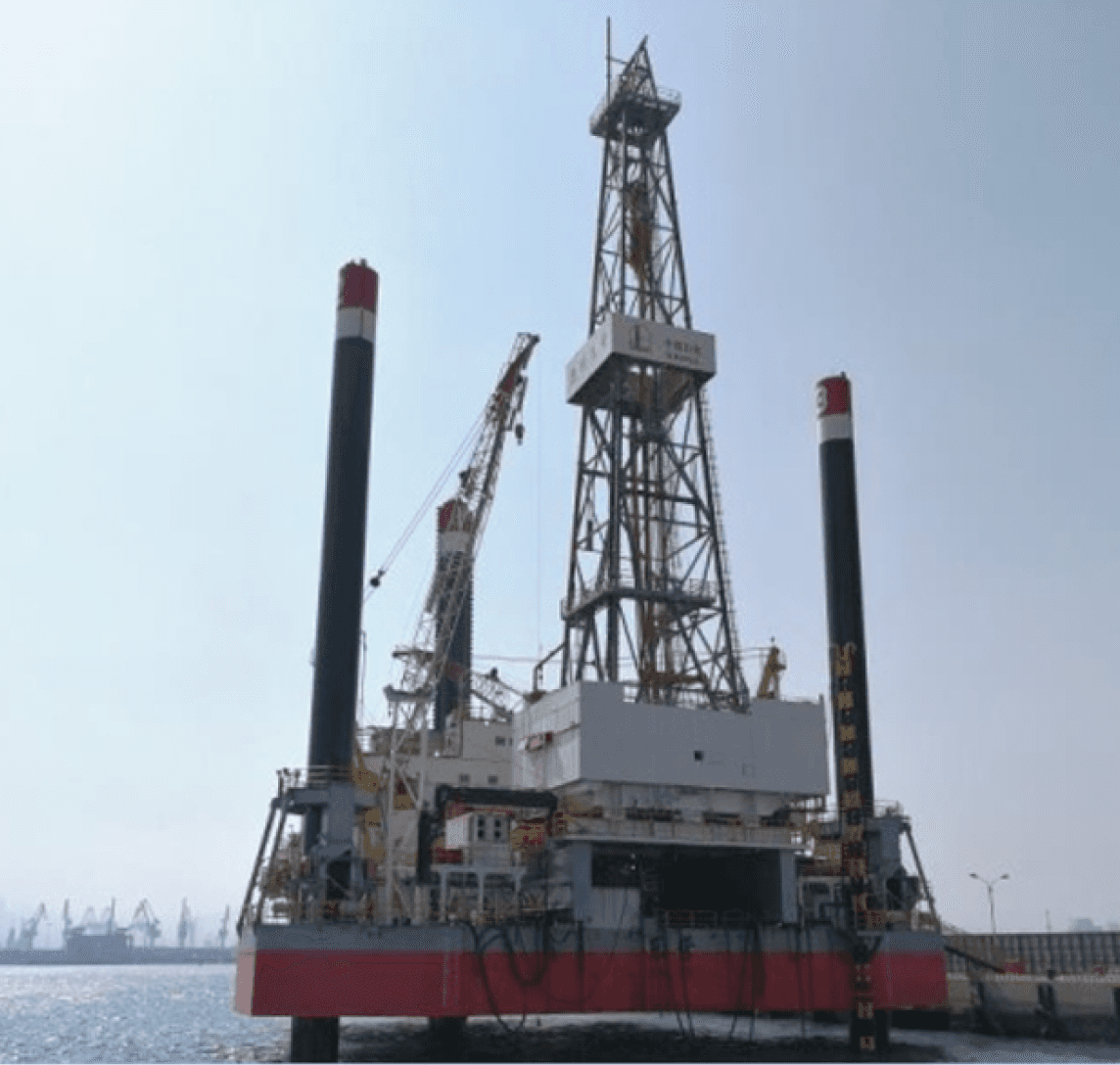

RIG SHENGLI 9
Main Particluars
Name: RIG SHENGLI 9
Constructed/upgrade in: 1980/2020
Builder: Baker Marine Corp
IMO Number: 8751564
Type: Drilling Jacking up
Drilling Capacity: 23000ft
Accommodation: 80POB
Main Dimensions/Technical Description
Light Ship: 3547T
Displacement at Loadline: 4200T
Hull Length: 158Ft
Hull Width: 156Ft
Hull Depth: 14Ft
Number of Legs/Length: 3/186Ft
Leg Spacing Transverse: 128Ft
Leg Spacing Longitudinal: 120Ft
Spud can Height: 8.69Ft
Storage Capacity
Drilling Water: 1308Bbl
Portable Water: 1308Bbl
Fuel: 1647Bbl
Mud Tank: 1358Bbl
Bulk Cement: 90M3
Bulk Bentonite/Barite: 90M3
Sack Storage: 260T
Main Equipment
Derrick: TJ450/44.8-2 • 147Ft
Crown Block: TC450 • Rated Capacity: 4500KN
Traveling Block: YC-450 • Rated Capacity: 4500KN
TDS: DQ70III-A • Rated Capacity: 4500KN
Maximum Continuous Torque: 5400N.M
Draw Works: 1320-UDBE • Rated Input Power: 1470KW
Mud Pump: F-1600 X 2 • Rated Input Power: 1470KW
Max Pump Pressure: 5000Psi
Routing Table: ZP375 • Maximum Opening: 952.5MM
AC - Generator: CAT3516C X 4 • 1505KW
SR4B X 4: 600V • 60HZ
Crane: X2 • Favelle Favco Cranes (M): SDN. BHD
Environmental Limits
Working Water Depth: 115Ft
Draft at Load Line (deepest): 10.117Ft
Transit Speed Towed (historical avg): 5Knots
Max. Wind Velocity (Transit): 12M/S
Max. Wave Height (Transit): 2M
Minimum Bollard Pull Per Tug: 100T
Maximum Preload Reaction Per Leg: 1900T
Variable Load Capacity (VL)
Drilling VL Capacity: 1360.8T
Transit VL Capacity: 909T
Survival VL Capacity: 1020T
Jacking VL Capacity: 608T
Social Control System
Shale Shaker: RSD/MBS204AI X 3 • 55-60L/S
Desander: ZQJ300 X 2 • 80 - 130M3/H
Desilter: ZQJ125 X 8 • 64 - 120M3/H
Mud/Gas Separator NQF - 1000/1.6: 1000M3/H
Degasser: LZCQ/3 • 180M3/H
1# Mud Centrifuge: LW500 - NY • 60M3/H
2# Mud Centrifuge: LW500 - NY • 60M3/H
BOP System
High Pressure Blowout Prevente
Double Ram: 13 5/8" • 10,000Psi
Single Ram: 13 5/8" • 10,000Psi
Annual Preventer: 13 5/8" • 5,000Psi
Kill Line: 3 1/16" • 10,000Psi
Choke Line: 3 1/16" • 10,000Psi
Accumulator: FKDQ960-7
Working Pressure: 3,000Psi
Cement Unit: PCS-621B • 8.3MPa
Flowrate: 3.3M3/Min
Cementing Manifold:
Working Pressure: 2" 15,000Psi
JackUp System
Motor: Baker Marin USA
Maximum Jacking Load: 4286.3T/Leg
Jacking Speed: 1Ft/M
Cantilever
Cantilever Envelope: Length X Width = 51.7Ft X 15Ft
Helicopter Landing Deck
Dimensions: 60Ft X 60Ft
Designed for Helicopter Type: S-61-N
Main Particluars
Name: RIG SHENGLI 9
Constructed/upgrade in: 1980/2020
Builder: Baker Marine Corp
IMO Number: 8751564
Type: Drilling Jacking up
Drilling Capacity: 23000ft
Accommodation: 80POB
Main Dimensions/Technical Description
Light Ship: 3547T
Displacement at Loadline: 4200T
Hull Length: 158Ft
Hull Width: 156Ft
Hull Depth: 14Ft
Number of Legs/Length: 3/186Ft
Leg Spacing Transverse: 128Ft
Leg Spacing Longitudinal: 120Ft
Spud can Height: 8.69Ft
Storage Capacity
Drilling Water: 1308Bbl
Portable Water: 1308Bbl
Fuel: 1647Bbl
Mud Tank: 1358Bbl
Bulk Cement: 90M3
Bulk Bentonite/Barite: 90M3
Sack Storage: 260T
Main Equipment
Derrick: TJ450/44.8-2 • 147Ft
Crown Block: TC450 • Rated Capacity: 4500KN
Traveling Block: YC-450 • Rated Capacity: 4500KN
TDS: DQ70III-A • Rated Capacity: 4500KN
Maximum Continuous Torque: 5400N.M
Draw Works: 1320-UDBE • Rated Input Power: 1470KW
Mud Pump: F-1600 X 2 • Rated Input Power: 1470KW
Max Pump Pressure: 5000Psi
Routing Table: ZP375 • Maximum Opening: 952.5MM
AC - Generator: CAT3516C X 4 • 1505KW
SR4B X 4: 600V • 60HZ
Crane: X2 • Favelle Favco Cranes (M): SDN. BHD
Environmental Limits
Working Water Depth: 115Ft
Draft at Load Line (deepest): 10.117Ft
Transit Speed Towed (historical avg): 5Knots
Max. Wind Velocity (Transit): 12M/S
Max. Wave Height (Transit): 2M
Minimum Bollard Pull Per Tug: 100T
Maximum Preload Reaction Per Leg: 1900T
Variable Load Capacity (VL)
Drilling VL Capacity: 1360.8T
Transit VL Capacity: 909T
Survival VL Capacity: 1020T
Jacking VL Capacity: 608T
Social Control System
Shale Shaker: RSD/MBS204AI X 3 • 55-60L/S
Desander: ZQJ300 X 2 • 80 - 130M3/H
Desilter: ZQJ125 X 8 • 64 - 120M3/H
Mud/Gas Separator NQF - 1000/1.6: 1000M3/H
Degasser: LZCQ/3 • 180M3/H
1# Mud Centrifuge: LW500 - NY • 60M3/H
2# Mud Centrifuge: LW500 - NY • 60M3/H
BOP System
High Pressure Blowout Prevente
Double Ram: 13 5/8" • 10,000Psi
Single Ram: 13 5/8" • 10,000Psi
Annual Preventer: 13 5/8" • 5,000Psi
Kill Line: 3 1/16" • 10,000Psi
Choke Line: 3 1/16" • 10,000Psi
Accumulator: FKDQ960-7
Working Pressure: 3,000Psi
Cement Unit: PCS-621B • 8.3MPa
Flowrate: 3.3M3/Min
Cementing Manifold:
Working Pressure: 2" 15,000Psi
JackUp System
Motor: Baker Marin USA
Maximum Jacking Load: 4286.3T/Leg
Jacking Speed: 1Ft/M
Cantilever
Cantilever Envelope: Length X Width = 51.7Ft X 15Ft
Helicopter Landing Deck
Dimensions: 60Ft X 60Ft
Designed for Helicopter Type: S-61-N
Main Particluars
Name: RIG SHENGLI 9
Constructed/upgrade in: 1980/2020
Builder: Baker Marine Corp
IMO Number: 8751564
Type: Drilling Jacking up
Drilling Capacity: 23000ft
Accommodation: 80POB
Main Dimensions/Technical Description
Light Ship: 3547T
Displacement at Loadline: 4200T
Hull Length: 158Ft
Hull Width: 156Ft
Hull Depth: 14Ft
Number of Legs/Length: 3/186Ft
Leg Spacing Transverse: 128Ft
Leg Spacing Longitudinal: 120Ft
Spud can Height: 8.69Ft
Storage Capacity
Drilling Water: 1308Bbl
Portable Water: 1308Bbl
Fuel: 1647Bbl
Mud Tank: 1358Bbl
Bulk Cement: 90M3
Bulk Bentonite/Barite: 90M3
Sack Storage: 260T
Main Equipment
Derrick: TJ450/44.8-2 • 147Ft
Crown Block: TC450 • Rated Capacity: 4500KN
Traveling Block: YC-450 • Rated Capacity: 4500KN
TDS: DQ70III-A • Rated Capacity: 4500KN
Maximum Continuous Torque: 5400N.M
Draw Works: 1320-UDBE • Rated Input Power: 1470KW
Mud Pump: F-1600 X 2 • Rated Input Power: 1470KW
Max Pump Pressure: 5000Psi
Routing Table: ZP375 • Maximum Opening: 952.5MM
AC - Generator: CAT3516C X 4 • 1505KW
SR4B X 4: 600V • 60HZ
Crane: X2 • Favelle Favco Cranes (M): SDN. BHD
Environmental Limits
Working Water Depth: 115Ft
Draft at Load Line (deepest): 10.117Ft
Transit Speed Towed (historical avg): 5Knots
Max. Wind Velocity (Transit): 12M/S
Max. Wave Height (Transit): 2M
Minimum Bollard Pull Per Tug: 100T
Maximum Preload Reaction Per Leg: 1900T
Variable Load Capacity (VL)
Drilling VL Capacity: 1360.8T
Transit VL Capacity: 909T
Survival VL Capacity: 1020T
Jacking VL Capacity: 608T
Social Control System
Shale Shaker: RSD/MBS204AI X 3 • 55-60L/S
Desander: ZQJ300 X 2 • 80 - 130M3/H
Desilter: ZQJ125 X 8 • 64 - 120M3/H
Mud/Gas Separator NQF - 1000/1.6: 1000M3/H
Degasser: LZCQ/3 • 180M3/H
1# Mud Centrifuge: LW500 - NY • 60M3/H
2# Mud Centrifuge: LW500 - NY • 60M3/H
BOP System
High Pressure Blowout Prevente
Double Ram: 13 5/8" • 10,000Psi
Single Ram: 13 5/8" • 10,000Psi
Annual Preventer: 13 5/8" • 5,000Psi
Kill Line: 3 1/16" • 10,000Psi
Choke Line: 3 1/16" • 10,000Psi
Accumulator: FKDQ960-7
Working Pressure: 3,000Psi
Cement Unit: PCS-621B • 8.3MPa
Flowrate: 3.3M3/Min
Cementing Manifold:
Working Pressure: 2" 15,000Psi
JackUp System
Motor: Baker Marin USA
Maximum Jacking Load: 4286.3T/Leg
Jacking Speed: 1Ft/M
Cantilever
Cantilever Envelope: Length X Width = 51.7Ft X 15Ft
Helicopter Landing Deck
Dimensions: 60Ft X 60Ft
Designed for Helicopter Type: S-61-N
MV Wanny Steph - 2100 BHP Crew/FSV
Main Particluars
Length Overall: 11oFt • 34M
Length Bo: 11oFt • 34M
Beam: 25Ft • 8M
Depth: 9Ft • 3M
Light Draft: 4Ft • 1M
Loaded Draft: 7Ft • 2M
Summer Freeboard: 7Ft • 2M
Lightship: 65LT • 66MT
Capacity
Fuel Tank Capacity: 420,000Ltrs
Dead Weight: 71Lt • 71Mt
Portable Water Tank: 10,000Ltrs
Transferable Portable Water: 5,000Ltrs
Fuel Endurance: 14Days
Electronics and Controls
Depth Recorder: Data Marine Digital
GMDSS: N/A
GPS: GARMIN 210
Radar: FURUNO
VHF: 2
SSB: 1
Internet/E-mail: Globe Wireless
Machinery
Main Engine: 3 Detroit Diesel 12V • 71Tl
Engine Horsepower: 2200Hp
Gear Ratio: 2.5:11
Rudders Propellers: 2
Propellers: 4
Generators: 40Kw • 371 X 2
Gear Model: Twin DIDC 514
Cargo Deck
Tonnage: 40Lt • 41Mt
Strength: Lt./Sg.Ft Mt./M2
Length: 62Ft • 19M
Weight: 22Ft • 7M
Performance
Minimum Speed: 10-12Knots
Maximum Speed: 20Knots
Cruising Speed: 10Knots
Maximum Fuel Consumption: 70G/Day
Cruising Fuel Consumption: 68Gph/Day
Special Equipment/Tonnage
External Fifi: 900GPM
Numbers of Monitors: 1
GRT: USA ITC
NRT: 99Tons, 46Tons, 67Tons, 56Tons
Accomodation
Passengers: 26 Bench Class
Cabin: 7
Bunk: 16
Mess: 8
Documentation
Class: ABS
Flag: Nigeria
Call Sign: 5NIG2
Year Built: 1993
USCG: SubChapter T
Rebuilt: 2014
Official Number: 377506
Port of Registry: Lagos
Main Particluars
Length Overall: 11oFt • 34M
Length Bo: 11oFt • 34M
Beam: 25Ft • 8M
Depth: 9Ft • 3M
Light Draft: 4Ft • 1M
Loaded Draft: 7Ft • 2M
Summer Freeboard: 7Ft • 2M
Lightship: 65LT • 66MT
Capacity
Fuel Tank Capacity: 420,000Ltrs
Dead Weight: 71Lt • 71Mt
Portable Water Tank: 10,000Ltrs
Transferable Portable Water: 5,000Ltrs
Fuel Endurance: 14Days
Electronics and Controls
Depth Recorder: Data Marine Digital
GMDSS: N/A
GPS: GARMIN 210
Radar: FURUNO
VHF: 2
SSB: 1
Internet/E-mail: Globe Wireless
Machinery
Main Engine: 3 Detroit Diesel 12V • 71Tl
Engine Horsepower: 2200Hp
Gear Ratio: 2.5:11
Rudders Propellers: 2
Propellers: 4
Generators: 40Kw • 371 X 2
Gear Model: Twin DIDC 514
Cargo Deck
Tonnage: 40Lt • 41Mt
Strength: Lt./Sg.Ft Mt./M2
Length: 62Ft • 19M
Weight: 22Ft • 7M
Performance
Minimum Speed: 10-12Knots
Maximum Speed: 20Knots
Cruising Speed: 10Knots
Maximum Fuel Consumption: 70G/Day
Cruising Fuel Consumption: 68Gph/Day
Special Equipment/Tonnage
External Fifi: 900GPM
Numbers of Monitors: 1
GRT: USA ITC
NRT: 99Tons, 46Tons, 67Tons, 56Tons
Accomodation
Passengers: 26 Bench Class
Cabin: 7
Bunk: 16
Mess: 8
Documentation
Class: ABS
Flag: Nigeria
Call Sign: 5NIG2
Year Built: 1993
USCG: SubChapter T
Rebuilt: 2014
Official Number: 377506
Port of Registry: Lagos
Main Particluars
Length Overall: 11oFt • 34M
Length Bo: 11oFt • 34M
Beam: 25Ft • 8M
Depth: 9Ft • 3M
Light Draft: 4Ft • 1M
Loaded Draft: 7Ft • 2M
Summer Freeboard: 7Ft • 2M
Lightship: 65LT • 66MT
Capacity
Fuel Tank Capacity: 420,000Ltrs
Dead Weight: 71Lt • 71Mt
Portable Water Tank: 10,000Ltrs
Transferable Portable Water: 5,000Ltrs
Fuel Endurance: 14Days
Electronics and Controls
Depth Recorder: Data Marine Digital
GMDSS: N/A
GPS: GARMIN 210
Radar: FURUNO
VHF: 2
SSB: 1
Internet/E-mail: Globe Wireless
Machinery
Main Engine: 3 Detroit Diesel 12V • 71Tl
Engine Horsepower: 2200Hp
Gear Ratio: 2.5:11
Rudders Propellers: 2
Propellers: 4
Generators: 40Kw • 371 X 2
Gear Model: Twin DIDC 514
Cargo Deck
Tonnage: 40Lt • 41Mt
Strength: Lt./Sg.Ft Mt./M2
Length: 62Ft • 19M
Weight: 22Ft • 7M
Performance
Minimum Speed: 10-12Knots
Maximum Speed: 20Knots
Cruising Speed: 10Knots
Maximum Fuel Consumption: 70G/Day
Cruising Fuel Consumption: 68Gph/Day
Special Equipment/Tonnage
External Fifi: 900GPM
Numbers of Monitors: 1
GRT: USA ITC
NRT: 99Tons, 46Tons, 67Tons, 56Tons
Accomodation
Passengers: 26 Bench Class
Cabin: 7
Bunk: 16
Mess: 8
Documentation
Class: ABS
Flag: Nigeria
Call Sign: 5NIG2
Year Built: 1993
USCG: SubChapter T
Rebuilt: 2014
Official Number: 377506
Port of Registry: Lagos
